Low Voltage Aluminium Waveform Cable - 1kV, XLPE, PVC - 95mm to 300mm
OVERVIEW
Used by Distribution Network Operators (DNOs) such as UKPN, WPD, ENW, NPG, SSE etc.

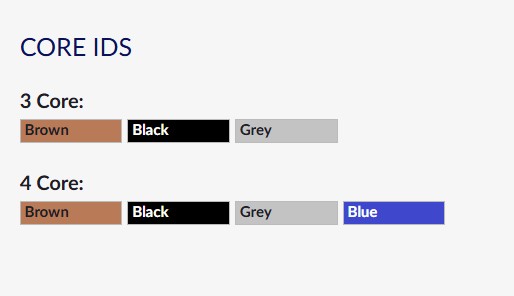

Aluminium Waveform cable is used as an energy supply cable most commonly found in power station distribution, panel boards and street lighting areas where mechanical protection is required. It consists of 3 or 4 aluminium conductors in sector shape with a copper conductor in a waveform lay.
Aluminium Waveform cable is used as an energy supply cable most commonly found in power station distribution, panel boards and street lighting areas where mechanical protection is required. It consists of 3 or 4 aluminium conductors in sector shape with a copper conductor in a waveform lay.
Standards
- BS7870 - 3.40
- Insulation & Sheath to BS7870-1
- BS EN 60228
Construction
Conductor: Class 1 solid aluminium conductor
Insulation: Cross-Linked Polyethylene (XLPE)
Separator: Binding tape
Bedding: Extruded Rubber Compound
Waveform Conductor: Plain Copper wire Screen
Sheath: Poly Vinyl Chloride (PVC) with UV additive
Sheath Colour: Black
Characteristics
Voltage Rating: 600/1000 Volts
Minimum Bending Radius: As per cable manufacturer datasheet
